In global packaging and logistics, edge protection of goods is a key link to reduce loss and improve customer satisfaction. Cartons, furniture, electronics, and building materials often suffer edge damage during handling, storage, and transportation—crushing, tearing, or warping, which directly increases enterprise costs. The Automatic paper edge protector machine (paper angle protector machine) solves this pain point efficiently, realizing full automation of edge protector production and improving packaging protection efficiency and stability.
Definition of Automatic Paper Edge Protector Machine

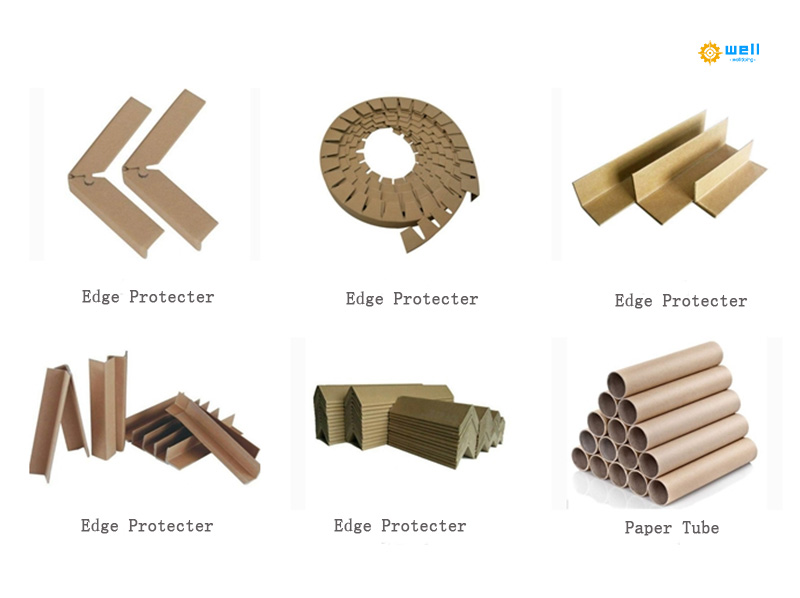

As a professional paper processing equipment, the automatic paper edge protector machine is mainly used to produce rigid edge protectors (common L-shaped, U-shaped, V-shaped) with kraft paper, corrugated paper, or cardboard as raw materials. Compared with manual or semi-automatic production, it integrates feeding, gluing, forming, drying, cutting, and stacking into one integrated production line. With minimal manual operation, it ensures stable product quality and consistent specifications, providing reliable edge protection components for various industries.
Working Principle of Automatic Paper Edge Protector Machine

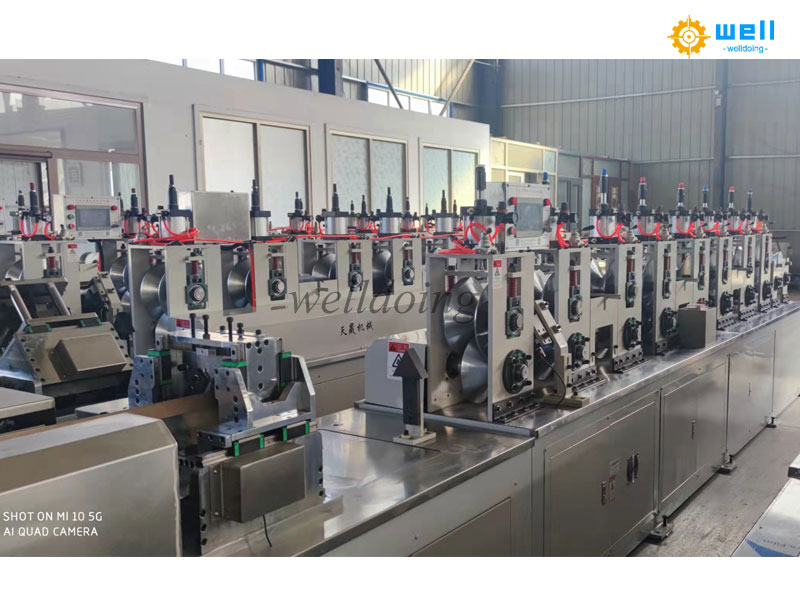

The Paper edge protector making machine operates with precise and efficient workflow, relying on advanced mechanical structure and electronic control system to achieve high-speed and high-precision production. The specific working process is as follows:
- Raw Material Feeding: Rolled raw paper (e.g., kraft paper) is placed on an unwind stand with a buffer device, enabling continuous feeding without shutting down the machine when replacing paper rolls. According to the required strength of edge protectors, 3 to 13 layers of paper are fed simultaneously to ensure the rigidity and load-bearing capacity of the finished product.
- Precision Gluing: The paper edge protector machine applies environmentally friendly, high-adhesion glue evenly on the surface of the paper layers through a precise gluing system. The gluing amount is adjustable, which not only ensures the firm bonding of multiple paper layers but also avoids glue waste and ensures the environmental protection of the finished edge protector.
- Forming Process: The glued paper layers are guided into the forming mold, which is customized according to the shape of the edge protector (L/U/V). Under the action of mechanical pressure, the paper layers are folded and shaped into the required edge protector form, ensuring the neatness of the fold and the consistency of the shape.
- Drying Treatment: The formed edge protectors enter the drying system, which uses hot air circulation to quickly dry the glue. The drying temperature and speed are adjustable, ensuring that the paper layers are firmly bonded and avoiding deformation or delamination of the finished product due to incomplete drying.
- Precision Cutting: According to the preset length (adjustable according to customer needs), the drying edge protectors are cut by a high-precision cutting device. The cutting is smooth and free of burrs, ensuring that the length of each edge protector is consistent and meets the actual packaging needs.
- Automatic Stacking: The automatic paper edge protector machine are automatically stacked by the stacking device, which is convenient for storage and transportation, further reducing manual labor and improving production efficiency.
