If you are searching for a reliable Automatic paper edge protector machine from China, Welldoing delivers a fully automatic, high-efficiency production line for manufacturing kraft paper edge protectors, also widely known as paper angle boards, corner protectors and edge boards for pallet packaging. As a professional China packaging machinery manufacturer, Welldoing focuses on stable, low-maintenance paper edge protector making machine solutions for converters, packaging factories and trading companies worldwide. This article covers machine workflow, core advantages, technical parameters, application scenarios and why our paper edge protector making machine stands out among Chinese machinery suppliers.

What is a paper edge protector making machine? A paper edge protector making machine is a dedicated packaging equipment that turns kraft paper rolls into rigid L-shaped, U-shaped paper edge protectors. These paper corner guards are essential protective packaging materials to reinforce cargo corners, prevent crushing, collision damage and deformation during sea freight, road transport, pallet stacking and warehouse storage. Compared with plastic protection parts, finished edge protectors from our paper edge protector making machine are fully recyclable, eco-friendly and cost-effective, matching the global trend of sustainable packaging. Many buyers also call this equipment paper angle board machine, paper edge board machine, paper corner protector machine; all these search terms refer to the same paper edge protector making machine supplied by Welldoing China.

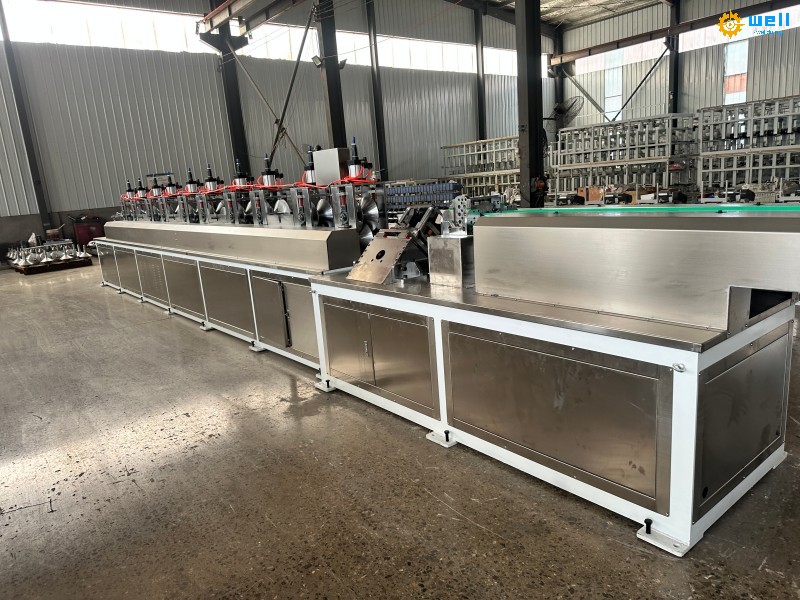

Our Welldoing paper edge protector making machine adopts an integrated all-in-one structure. The complete production line includes hydraulic unwinding stand, automatic paper guiding and web tension control unit, precision glue coating system, multi-layer paper laminating section, forming roller group, servo fixed-length cutting station and automatic stacking conveyor. The whole production process runs continuously after one-time parameter setting. Operators only need to load kraft paper rolls and collect finished paper edge protectors, which greatly cuts labor cost and avoids unstable quality caused by manual operation. The PLC + servo control system is the core upgrade of this Paper edge protector making machine. Users can adjust leg width, wall thickness, cutting length and running speed directly on the touch screen. The servo cutter ensures cutting tolerance stays within ±1mm, so every batch of paper edge protectors keeps uniform size and neat cutting surface. The glue system uses circulation glue tank with filtering design, reducing glue waste, preventing glue blockage and keeping clean working conditions.

Stable running performance is the biggest advantage of Welldoing China paper edge protector making machine. The main frame uses thickened steel plate welding and stress relief treatment, suitable for long-time non-stop production. Forming wheels are surface-hardened and wear-resistant, supporting continuous high-speed operation without frequent replacement. This paper edge protector making machine can work stably at 0–60 m/min, meeting both small-batch customized orders and large-volume mass production. It supports 3–12 layers of kraft paper compounding. The finished paper edge protector leg width ranges from 25 mm to 100 mm, thickness from 1.5 mm to 8 mm, cutting length customizable from 100 mm up to 6000 mm. By changing forming moulds, the same paper edge protector making machine can produce standard L type edge protectors and U-shaped edge boards, which brings strong flexibility for packaging manufacturers with diverse product demands. Raw material adaptability is excellent: it works well with 160–350 gsm kraft paper, recycled kraft paper and test liner paper, helping buyers control raw material procurement budget flexibly.

Buyers choose Welldoing paper edge protector making machine for three key reasons. First, competitive factory price from China. As a direct manufacturer, we skip middle traders and offer transparent quotation for the paper edge protector making machine, spare parts and optional upgrades like online punching unit, automatic bundling device. Second, complete after-sales service. Every paper edge protector making machine from Welldoing gets one-year warranty for core components. We provide English operation manual, electrical drawing, online video guidance for installation, debugging and daily maintenance. Overseas engineer on-site service is available upon request. Third, flexible customization. If you have special requirements on machine layout, voltage, auxiliary functions or production capacity, our engineering team can modify the paper edge protector making machine according to your workshop layout and local market needs. All machines pass CE certification, ready for export to Southeast Asia, Middle East, Europe, Africa and Latin America.

Where are finished products from the paper edge protector making machine used? Paper edge protectors are widely applied in pallet packaging for furniture, ceramic tiles, glass, metal profiles, building materials, home appliances, doors and windows, batteries and textile rolls. When combined with stretch film and plastic strapping bands, they lock pallet loads tightly and eliminate corner damage in transit. Many packaging companies used to buy finished paper edge protectors from suppliers, but outsourcing leads to unstable lead time and rising material cost. Purchasing a Welldoing paper edge protector making machine lets you produce edge protectors on-site, control production schedule and lower packaging cost in the long run. It is a profitable investment for packaging converters and end manufacturers with large packaging consumption.

How to maintain your paper edge protector making machine for longer service life? Daily maintenance is simple. Keep the glue roller and forming rollers clean after shift, check the tension sensor and servo cutter regularly, lubricate transmission gears and chains following the manual, and inspect electrical terminals periodically. Our technical team shares regular maintenance checklists for every paper edge protector making machine buyer. If any fault appears, send us video and pictures, our engineer team can diagnose and guide troubleshooting quickly.

For global importers and packaging factory owners looking for a trustworthy China supplier of paper edge protector making machine, Welldoing is your reliable partner. We do not only sell a automatic paper corner board making machine, but provide a complete packaging production solution. You can pair this line with other Welldoing packaging machines such as paper tube machine, flexo printer slotter die cutter, folder gluer and sewage treatment equipment to build a full carton and protective packaging workshop.

If you want the latest quotation, detailed technical datasheet, machine running video or factory visit arrangement for the paper edge protector making machine, contact Welldoing China today. Our sales and engineering team will reply promptly and support your packaging business growth with high-quality paper edge protector making machine.
