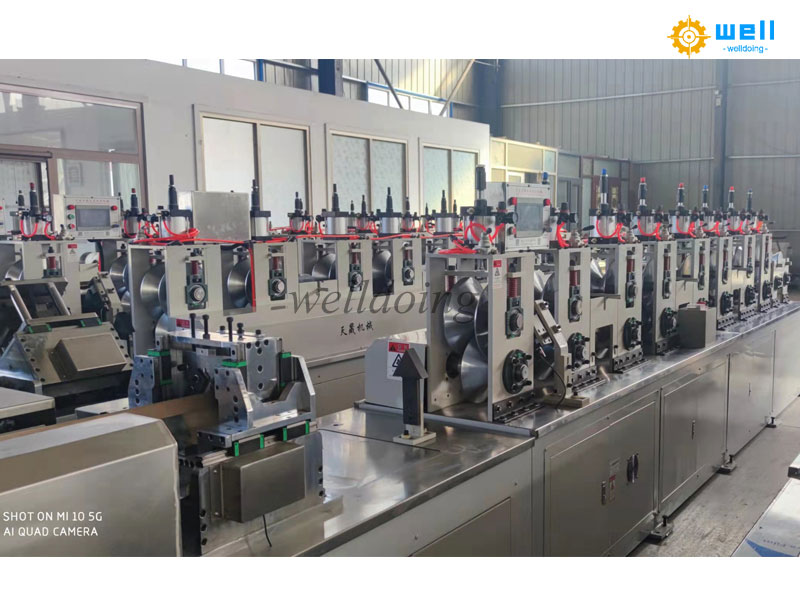

The automatic paper angle board machine, also known as the automatic paper edge protector making machine, is a cutting-edge equipment engineered for the modern packaging industry. It is specially designed to convert ordinary kraft paper rolls into high-strength, eco-friendly L-shaped or customized paper angle boards, which are widely used to protect the edges of cartons, pallets, and fragile goods during transportation and handling. With the integration of advanced automation technology, precision control systems, and energy-saving design, this machine has become an indispensable core equipment for enterprises pursuing efficient, cost-effective, and sustainable packaging production. Its outstanding features are mainly reflected in the following aspects:
1. Full-Automatic Operation, Greatly Reducing Labor Costs
The Automatic paper corner board making machine realizes a fully automated production process from raw material feeding to finished product stacking, without the need for extensive manual intervention. It integrates multiple functional modules such as automatic paper unwinding, precision gluing, forming, high-pressure pressing, servo tracking cutting, and automatic stacking, which can complete all production steps of paper angle boards in one go. Operators only need to set relevant parameters through the touch screen, load the kraft paper rolls, and start the machine to achieve continuous and stable production. This not only avoids the errors caused by manual operation but also reduces the demand for professional operators—generally, only 1-2 people are needed to complete the operation and monitoring of the whole machine, significantly reducing labor costs and improving production efficiency for enterprises.
2. High-Precision Control, Ensuring Consistent Product Quality

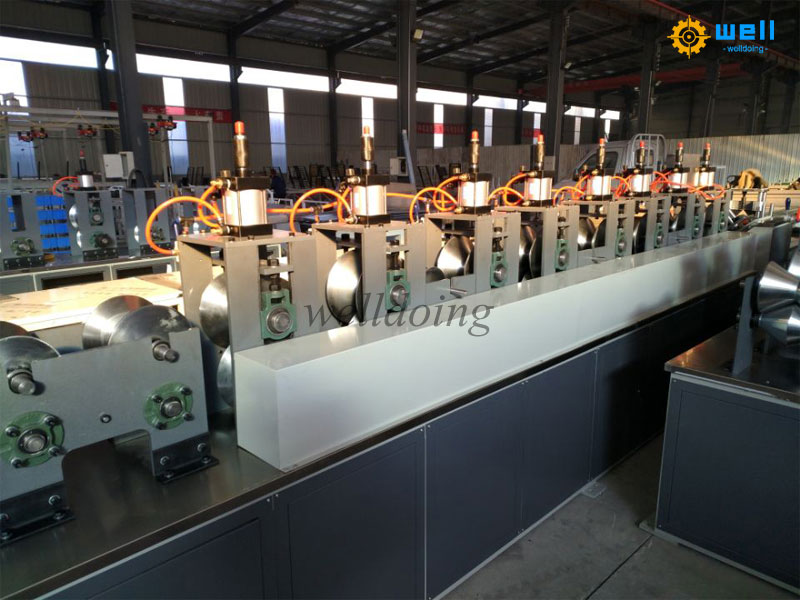

Equipped with advanced PLC control system and touch screen HMI, the automatic paper angle board machine supports precise parameter setting and real-time monitoring of the production process. The servo-driven control system and CNC controller ensure high-precision operation in every link: the gluing system adopts a cascade gluing design, which can evenly coat the adhesive on the paper layers, avoid glue waste, and enhance the bonding strength of the paper angle boards; the forming mechanism uses pneumatically controlled angular rollers to shape the paper into standard 90-degree angles step by step, ensuring sharp angles, uniform thickness, and smooth surface of the finished products; the servo tracking cutting technology can accurately cut the paper angle boards to the preset length, with a cutting accuracy of up to 1mm, and the length range can be adjusted from 50mm to 9000mm according to actual needs, effectively ensuring the consistency of product specifications and meeting the strict quality requirements of different industries. In addition, the machine is equipped with a real-time monitoring and alarm system—if any abnormality occurs during operation, the machine will stop automatically and send an alert, minimizing downtime and ensuring stable product quality.
3. Strong Customization Capability, Adapting to Diverse Needs

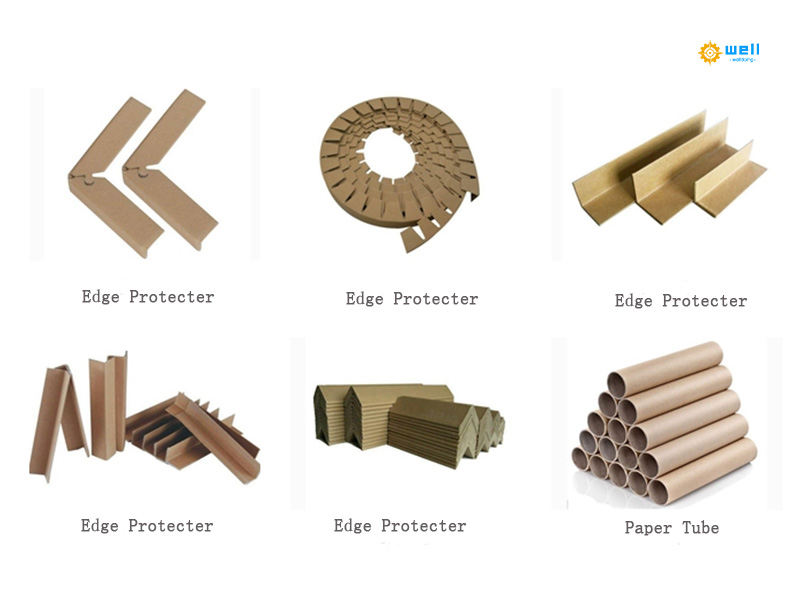

The paper edge protector machine has strong flexibility and can be customized according to the specific needs of different industries and products. It supports adjustable parameters such as the leg width, wall thickness, and length of the paper angle boards: the leg width can be adjusted from 15mm to 120mm, the wall thickness ranges from 1.5mm to 10mm, and the paper layers can be adjusted from 3 to 13 layers according to the required strength. It can not only produce standard L-shaped paper angle boards but also customize U-shaped or arc-shaped edge protectors according to special packaging needs, widely adapting to the packaging requirements of electronics, furniture, construction, logistics, and other industries. Whether it is small-batch customized production or large-scale mass production, the machine can flexibly switch parameters without complicated adjustments, effectively improving the adaptability of the production line.
4. Energy-Saving and Eco-Friendly, Reducing Production Costs
In line with the global concept of green development, the machine adopts an energy-efficient design, using high-quality energy-saving motors and frequency converters, which can adjust the operating speed according to production needs, effectively reducing energy consumption compared with traditional models. At the same time, the machine is equipped with an automatic glue recycling system, which can recycle the excess glue in the gluing process, reducing raw material waste and lowering production costs. The raw material used in the machine is environmentally friendly kraft paper, which is recyclable, degradable, and pollution-free, replacing traditional plastic or wood edge protectors and helping enterprises achieve green production, comply with environmental protection policies, and enhance corporate social responsibility image.
5. Sturdy Structure and Easy Maintenance, Ensuring Long-Term Stable Operation
The main body of the machine is made of high-strength heavy-duty steel, with a sturdy structure that can withstand the pressure and vibration during long-term continuous production, ensuring stable operation and long service life. The key components are selected from well-known brand products, with low failure rate and strong durability, reducing the frequency of maintenance and repair. In addition, the machine is designed with humanized maintenance functions: the structure is simple and easy to disassemble, the key parts are easy to access, and the daily maintenance only requires regular cleaning and lubrication, without professional maintenance skills, which greatly reduces the maintenance cost and downtime, ensuring the continuous and stable operation of the production line.
6. High Production Efficiency, Meeting Large-Scale Production Needs
With optimized mechanical structure and advanced transmission system, the machine has high production efficiency, with a production speed of up to 15-60 meters per minute, and can produce up to 5 tons of paper angle boards per day, which is far higher than manual or semi-automatic production modes. The continuous production design avoids the time waste caused by intermittent operation, effectively improving the production throughput and meeting the large-scale production needs of enterprises. At the same time, the machine can be seamlessly integrated into the modern automatic packaging production line, matching with unpacking machines, packing machines, and palletizing machines, forming a complete automatic packaging system and further improving the overall production efficiency of the enterprise.
In summary, the paper angle board making machine integrates automation, precision, customization, energy-saving, and durability. It not only solves the pain points of low efficiency, poor quality consistency, and high labor costs in traditional paper angle board production but also provides a green, efficient, and cost-effective packaging solution for enterprises. It is an ideal equipment for enterprises to upgrade their packaging production lines and enhance market competitiveness.
