A paper edge protector making machine is a professional automated packaging machinery designed to produce high-strength paper edge protectors, also known as paper corner boards, edge boards, and paper angle guards. As the demand for eco-friendly, cost-effective, and durable packaging solutions surges across global logistics, manufacturing, and shipping industries, this machine has become indispensable for modern packaging production lines. Automatic paper edge protector machine fully automates the entire production process from paper unwinding, gluing, forming, pressing, cutting to automatic stacking, enabling mass production of standardized paper edge protectors with stable quality and high efficiency.

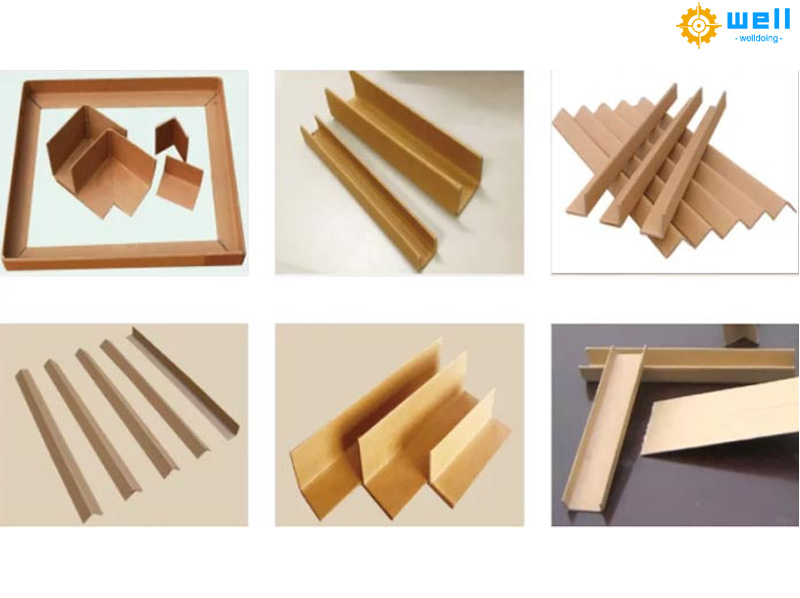

Unlike traditional manual or semi-manual paper edge protector production, the advanced automatic paper edge protector making machine minimizes human intervention, reduces production errors, and drastically boosts output capacity. It is widely used to manufacture L-shaped, U-shaped, V-shaped, flat, and notched paper edge protectors, which are core protective packaging materials for palletizing, cargo transportation, furniture packaging, electronic product packaging, and heavy goods bundling.
Core Working Principle of Paper Edge Protector Making Machine

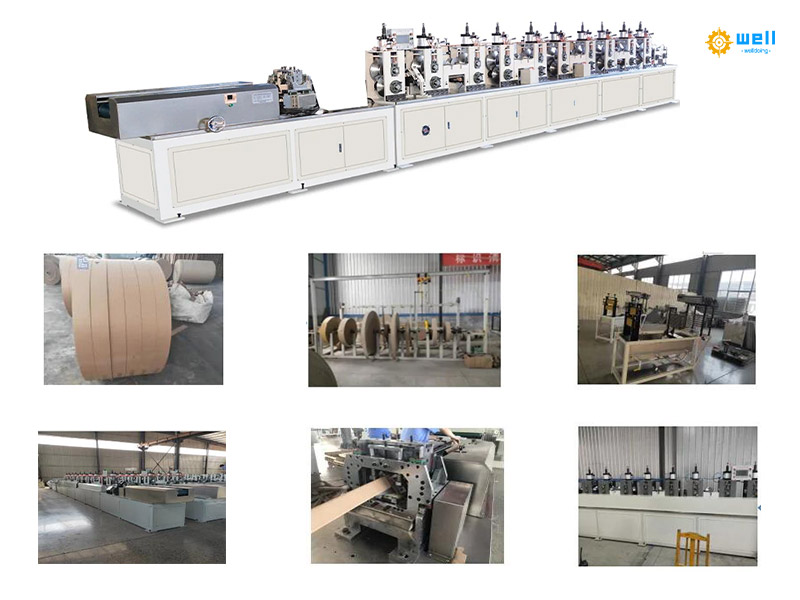

The operation of a high-performance paper angle edge corner protector machine follows a continuous and synchronized production workflow, with every process precisely controlled by a CNC servo system to ensure product consistency and structural stability. The complete production process includes six key steps:
1. Paper Unwinding & Feeding: The machine is equipped with a multi-station paper unwinding frame, which steadily feeds multiple layers of high-quality kraft paper rolls into the production system. The automatic tension control system avoids paper deviation, wrinkling, or breakage, laying a foundation for uniform finished products.
2. Even Gluing & Lamination: Adopting intelligent recycling gluing equipment, the machine applies environmentally friendly adhesive evenly on the surface of each paper layer. The adjustable gluing volume ensures firm lamination without excess glue overflow, improving the bonding strength while saving raw material costs.

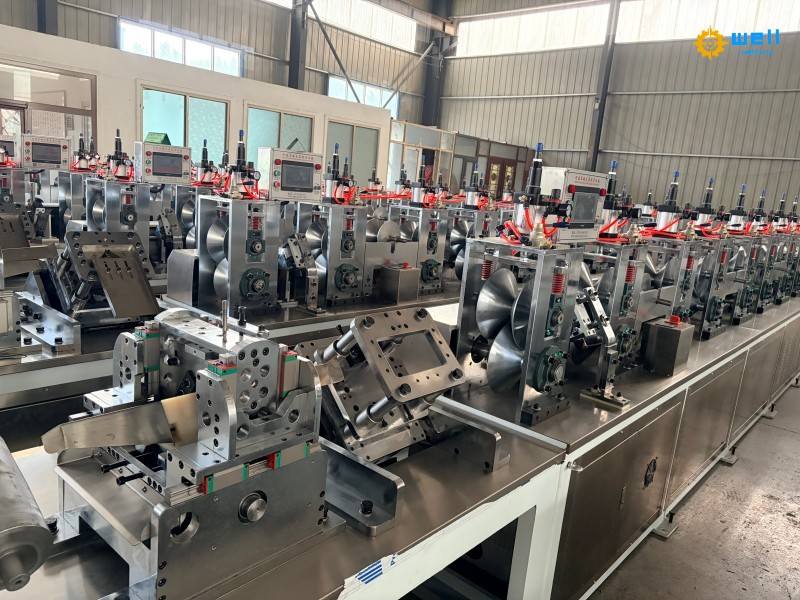

3. Precision Forming: The glued multi-layer kraft paper passes through custom precision forming molds and roller sets. Through gradual folding and shaping, the flat paper is processed into customized profiles such as L-shape, U-shape, and V-shape. The adjustable forming head adapts to different product specifications to meet diverse packaging needs.
4. High-Pressure Pressing & Curing: High-pressure compression rollers compact the formed paper profiles tightly to eliminate gaps between paper layers. Optional heating and drying functions accelerate adhesive curing, enabling the paper edge protectors to gain immediate hardness and compression resistance, preventing deformation during use.
5. Fixed-Length Precision Cutting: Equipped with high-speed synchronous cutting blades, the paper edge protector machine cuts continuous paper edge protector strips into customized lengths accurately. The servo positioning system ensures cutting error is controlled within a tiny range, meeting standardized packaging requirements.
6. Automatic Stacking & Output: The finished products are automatically sorted, arranged, and stacked by the intelligent stacking system, realizing one-stop production from raw material input to finished product output, which greatly saves manual sorting time.
Key Advantages of Modern Paper Edge Protector Making Machine
With the upgrading of global green packaging standards, the new-generation paper edge protector making machine has obvious competitive advantages in efficiency, product quality, energy saving, and applicability, becoming the preferred equipment for packaging manufacturers:
1. High Production Efficiency: The high-speed model supports a production speed of 30-40 meters per minute, realizing large-batch continuous production. It can stably output thousands of qualified paper edge protectors per hour, effectively shortening order delivery cycles and improving enterprise production capacity.
2. Stable & Superior Product Quality: Controlled by a professional CNC system, the machine achieves micron-level precision in forming, gluing, and cutting. The produced paper edge protectors feature standard 90° right angles, uniform thickness, high compression resistance, and strong toughness, which can effectively resist extrusion and collision during cargo transportation and storage, reducing product damage rates.
3. Wide Specification Adaptability: The equipment supports flexible adjustment of product width, thickness, length, and shape. It can produce diversified edge protectors for light-duty packaging, heavy-duty industrial palletizing, and special-shaped product protection, fully meeting the personalized packaging needs of different industries.
4. Eco-Friendly & Cost-Saving: The paper corner protector production line uses recyclable kraft paper and environmentally friendly water-based glue, and the produced paper edge protectors are fully degradable, compliant with global environmental protection packaging policies. Meanwhile, the automatic material-saving design reduces raw material waste, and the low energy consumption operation lowers long-term production costs for enterprises.
5. Intelligent & Easy Operation: Equipped with a human-machine touch screen interface, operators can simply set parameters such as production speed, product size, and cutting length. The machine has automatic fault detection and alarm functions, with low failure rate and simple daily maintenance, reducing technical operation thresholds and labor costs.
Main Applications of Paper Edge Protectors Produced by the Machine
Paper edge protectors manufactured by professional making machines are essential protective accessories in the modern packaging industry, widely covering multiple downstream fields:
- Logistics & Pallet Packaging: Used for pallet cargo edge reinforcement to prevent goods from collapsing and deforming during stacking, handling, and long-distance transportation.
- Furniture & Building Materials Packaging: Protect the edges and corners of wooden furniture, glass, ceramic tiles, and plates from collision and abrasion during transit.
- Electronic & Electrical Products: Provide buffer and anti-collision protection for precision electronic equipment, home appliances, and instrument packaging.
- Hardware & Mechanical Equipment: Reinforce the packaging of heavy hardware parts and mechanical accessories to improve packaging firmness and compression resistance.
- Cross-Border Shipping & Warehousing: As green and low-cost packaging materials, they meet international environmental protection standards and are suitable for large-scale export cargo packaging.
Semi-Automatic vs Automatic Paper Edge Protector Making Machine
In the market, paper edge protector making machines are mainly divided into semi-automatic and fully automatic types, suitable for different production scale needs:
Semi-Automatic Paper Edge Protector Making Machine: It features a simple structure, low price, and easy installation. It requires manual auxiliary feeding and stacking, suitable for small factories, small-batch customized production, and start-up enterprises with limited budget.
Fully Automatic Paper Edge Protector Making Machine: It realizes full-process unmanned production with higher speed, higher precision, and more stable operation. It supports 24-hour continuous work, ideal for large packaging factories and enterprises with large-volume fixed orders, which can significantly improve overall production efficiency and standardized production level.
How to Choose a High-Quality Paper Edge Protector Making Machine
To purchase a cost-effective and durable paper angle board making machine, enterprises need to focus on the following core indicators:
1. Production Performance: Select equipment with stable running speed, low failure rate, and precise cutting and forming accuracy to ensure long-term stable mass production.
2. Specification Flexibility: Prioritize machines with adjustable molds and multi-functional production capabilities to support the production of various shapes and sizes of edge protectors and expand product coverage.
3. Core Configuration: High-quality servo control system, thickened pressure rollers, and durable cutting blades determine the machine’s service life and product quality, which are key selection points.
4. After-Sales Service: Choose manufacturers with complete after-sales support, including installation debugging, technical training, and long-term maintenance services, to avoid production delays caused by equipment failure.
Conclusion
As green packaging becomes the mainstream trend of global packaging industry upgrading, the paper edge protector making machine has become a vital equipment for packaging production enterprises. Its advantages of high efficiency, intelligence, energy saving, and wide applicability help enterprises reduce production costs, improve product competitiveness, and meet the growing market demand for eco-friendly protective packaging. Whether for small-batch customized production or large-scale standardized mass production, the right paper edge protector making machine can bring stable economic benefits and long-term development advantages for packaging manufacturers.
