1. Intelligent PLC Central Control, Ultra-Low Operation Threshold
The biggest upgrade of this new automatic paper tube making machine lies in the whole-line PLC intelligent control system, which is the core competitiveness distinguishing it from ordinary spiral paper tube machines. All production parameters including paper feeding speed, glue coating volume, winding layers, tube inner diameter, finished tube length and cutting speed can be directly set on the 10-inch industrial touch screen; the system stores 99 groups of common product parameter programs, and switching different specifications of paper tubes only takes 5-10 minutes without repeated debugging, greatly shortening the batch switching cycle and improving factory operational flexibility.
Equipped with intelligent safety protection and fault self-diagnosis function: automatic shutdown alarm for paper breakage, glue shortage, equipment overload and motor abnormality; the control panel displays fault codes in real time, which is convenient for operators and after-sales engineers to quickly troubleshoot, effectively reducing equipment idle downtime. Even novice workers can proficiently operate the entire automatic paper tube making production line after 1-2 hours of simple training, breaking the dependence on skilled technicians and greatly saving enterprise labor costs.
2. High-Speed Stable Production, Strictly Controlled Product Precision
This automatic paper tube making machine supports spiral multi-layer kraft paper winding molding, the production speed ranges from 3m/min to 22m/min adjustable according to tube specifications, and the daily output can reach 8,000 to 30,000 paper tubes, fully meeting large-volume order delivery demands. Adopting imported servo tracking cutting structure and photoelectric fixed-length positioning technology, the length error of finished paper tube is controlled within ±0.5mm, the inner diameter error ≤0.2mm, the wall thickness is uniform without deviation, the winding is tight and not loose, the tube body is round and straight without deformation, and the cutting section is smooth and burr-free, which perfectly meets the high-standard winding requirements of textile yarn cores, plastic film cores, adhesive tape cores, toilet paper cores, industrial packaging paper tubes and large-caliber construction paper tubes.
The whole machine is equipped with constant tension paper feeding system, which avoids paper pulling, wrinkling and overlapping caused by unstable tension during high-speed operation; the stainless steel automatic gluing device realizes uniform glue application, no glue overflow or glue deficiency, enhances the bonding firmness between paper layers, effectively reduces the scrap rate of finished products by 15%-20%, and maximizes the utilization rate of kraft paper raw materials to reduce production costs.
3. Solid Durable Structure, Energy Saving & Low Maintenance Cost
The frame of the paper tube making machine is made of thickened carbon steel overall welding, after high-temperature annealing stress relief treatment, long-term high-load operation without deformation and vibration; key transmission parts such as bearings, gears and spindles adopt internationally renowned brand accessories, wear-resistant and corrosion-resistant, with a service life of more than 10 yearsAlibaba.co…. The motor adopts energy-saving variable frequency motor, which consumes 25% less electricity per unit output than traditional equipment, compressing long-term factory operating expenses for buyers.
The overall layout of the production line is reasonable, the disassembly and cleaning of the glue tank and paper feeding channel is convenient, no dead corners are easy to accumulate glue and paper scraps; the wearing parts are universal standard models, with sufficient spare parts supply, overseas customers can quickly purchase and replace them, and the later maintenance difficulty and cost are far lower than imported high-priced paper tube machinery.
4. Wide Application & Full Customization Service
Our PLC automatic paper tube making machine supports customized production of paper tubes with inner diameter 15mm-500mm, wall thickness 1mm-15mm, winding layers 3-16 layers, and finished tube length arbitrary setting, covering almost all mainstream paper tube application scenarios in the global market:
- Daily consumer goods industry: toilet paper cores, kitchen paper cores, aluminum foil & plastic wrap winding cores
- Textile industry: yarn winding paper tubes, chemical fiber spinning cores, fabric rolling tubes
- Packaging industry: poster packaging tubes, gift cylindrical packaging tubes, logistics protective paper sleeves
- Industrial manufacturing: plastic film cores, adhesive tape cores, large-caliber construction paper tubes, firework paper tubes
We can adjust the number of winding heads, add drying devices, paper slitting auxiliary equipment and finished tube sorting racks according to customers’ actual production needs, to build a one-stop integrated automatic paper tube making production line.

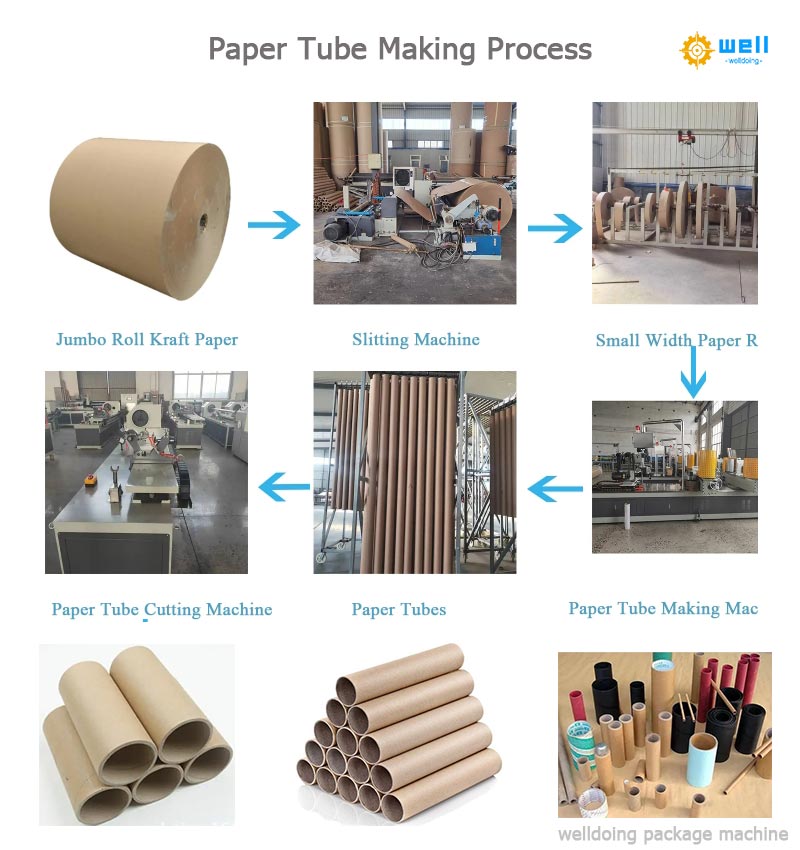

Complete Automatic Production Flow of PLC Paper Tube Making Line
- Jumbo kraft paper roll loading → motorized unwinding + constant tension control
- Automatic double-sided/single-sided gluing, uniform glue coating
- Multi-layer paper spiral winding molding under PLC speed synchronization control
- Servo photoelectric fixed-length automatic cutting
- Finished paper tube automatic blanking & temporary storage
The whole process runs continuously automatically, only 1-2 workers are needed to be on duty for raw paper replenishment and finished tube collection, realizing high-efficiency streamlined production.
Why Choose Us as Your Automatic Paper Tube Making Machine Supplier?

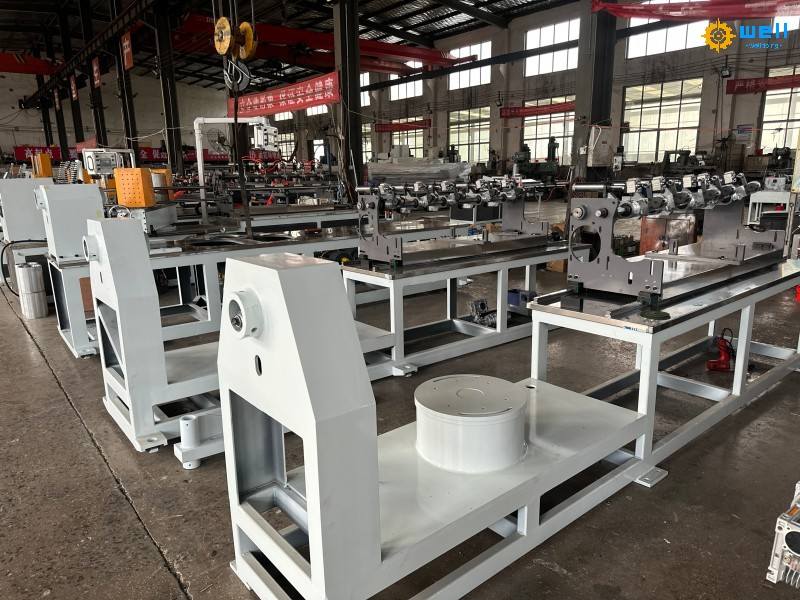

- Factory Direct Supply, No Middleman Markup: We own a 20,000㎡ professional machinery manufacturing factory, independent R&D and production, with strong production capacity, supporting bulk orders and fast delivery;
- Strict Quality Inspection System: Each automatic paper tube making machine undergoes 72-hour continuous running test before delivery, with stable performance guaranteed, CE certified to meet EU industrial standards;
- Global After-Sales Support: Provide English operation manuals, video teaching tutorials, remote PLC parameter debugging guidance; arrange overseas engineers for door-to-door installation, commissioning and operator training for large orders; sufficient spare parts warehouse ensures quick global delivery of accessories;
- Long-Term Technical Iteration: We update and optimize the paper tube machine control program and mechanical structure every year, and provide preferential upgrade services for old customers’ equipment.
Market Prospect of Automatic Paper Tube Making Machine in 2026
Driven by global carbon neutrality goals and plastic ban policies, recyclable paper packaging will maintain sustained growth momentum in the next 5 years. The global paper tube market compound annual growth rate exceeds 5%, and the demand for automated, intelligent paper tube making equipment continues to rise; emerging markets such as Southeast Asia, South Asia and Africa are accelerating the construction of packaging industrial parks, becoming the main incremental market for automatic paper tube making machine exports. Upgrading to PLC full-automatic production line is the inevitable choice for paper tube manufacturers to improve competitiveness, reduce costs and seize market orders.
If you are looking for a reliable, high-efficiency and cost-effective automatic paper tube machine with mature PLC control system, welcome to send us your required paper tube specifications, daily output demand and target voltage, we will tailor the most suitable production line plan for you, and provide detailed quotations, parameter lists and factory production workshop videos for your reference. We sincerely invite global merchants to visit our factory for inspection and negotiation, and create a win-win green packaging industry future together.
