If you run a corrugated carton factory, packaging converter, or packaging plant that mass-produces corrugated partitions, carton dividers and inner grid inserts, you know that traditional partition assembly is one of the biggest bottlenecks on your production floor. Conventional partition assembly work relies heavily on manual gluing, manual slot alignment and hand assembly. It is slow, inconsistent, labour-intensive, and vulnerable to glue smudges, misaligned grids, loose joints and high reject rates. Our Full Auto Partition assemblymachine is built to solve exactly these pain points. This advanced partition assembly machine eliminates manual gluing completely, automates cross interlocking of vertical and horizontal pre-slotted corrugated boards, and delivers ready-to-use corrugated partitions continuously for your packaging production line.

As a high-performance corrugated partition assembler, this partition assembly machine is engineered for B2B packaging manufacturers that need stable high output, low operating cost and consistent partition quality. Unlike older partition assembling machines that still require glue application by hand or semi-automatic glue systems, our model adopts pure mechanical interlock assembly technology. No glue pot, no glue tank, no manual glue brushing, no glue drying waiting time. The whole forming process depends on precise slot interlocking between corrugated strips. This core advantage makes it stand out from most standard partition assembly machines on the global market, and it is the top reason packaging converters switch from manual partition workshops to automated partition assembly lines.

How does this no-manual-gluing partition assembly machine work? The workflow is fully automatic and streamlined. Stacked pre-slotted corrugated boards are loaded on the longitudinal and transverse feeding stations. Servo-controlled feeding systems and vacuum suction units separate sheets one by one, send vertical and horizontal corrugated strips into the assembly station synchronously. High-precision positioning sensors guide the cross insertion action, interlock the slotted boards into neat grid partitions automatically, then finished corrugated partitions are conveyed out and stacked neatly. The whole cycle runs without gluing, without hand fitting, without operators standing beside to adjust or repair defective partitions. Operators only need to replenish raw corrugated board stacks and monitor the touchscreen HMI, which greatly cuts labour dependency for partition production.

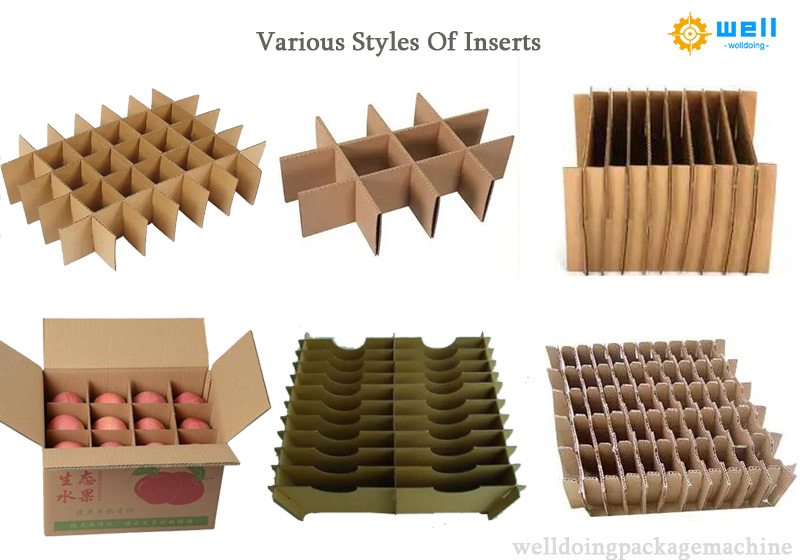

The advantages of choosing this no-manual-gluing Automatic partition assembly machine cover production quality, cost control, workshop management and downstream packaging compatibility. First, quality stability improves dramatically. Manual gluing always brings unstable glue volume, uneven spreading, glue marks on corrugated surfaces, delayed curing and partition deformation. Without glue, every corrugated divider maintains uniform shape, clean surface and consistent interlock tightness. The finished partition will not soften, warp or separate due to glue failure in humid storage or long transit. It is ideal for packaging glass bottles, ceramic goods, fruit trays, electronic components and other fragile products that need clean, sturdy corrugated inner dividers.

Second, this partition assembly machine brings obvious labour savings and throughput growth. Manual partition assembly is repetitive and tiring work. Many carton factories need 4 to 8 skilled workers just to assemble partitions, and output is limited by worker speed and fatigue. This full auto partition assembly machine can run continuously, supporting stable high-speed output and dual-station optional configuration. It replaces most manual assembly posts, cuts payroll pressure and solves the common headache of labour shortage in packaging manufacturing. Production scheduling becomes predictable, and you can accept larger bulk orders of corrugated partitions without expanding your workforce.

Third, operation and size changeover are user-friendly for your workshop team. This corrugated partition assembler uses PLC control and colour touch screen interface. All partition grid sizes, feeding speed, stacking counts and positioning parameters can be set digitally. When you switch between different cell sizes, such as 4-cell, 6-cell, 8-cell, 12-cell and custom multi-grid partitions, adjustment is finished on screen without complicated mechanical re-calibration. Electric lifting structures for longitudinal and transverse feeding tables make size switching much faster. It supports small batch custom partition orders as well as mass repetitive production, which is perfect for carton factories receiving mixed orders from beverage, agriculture, hardware and home appliance clients.

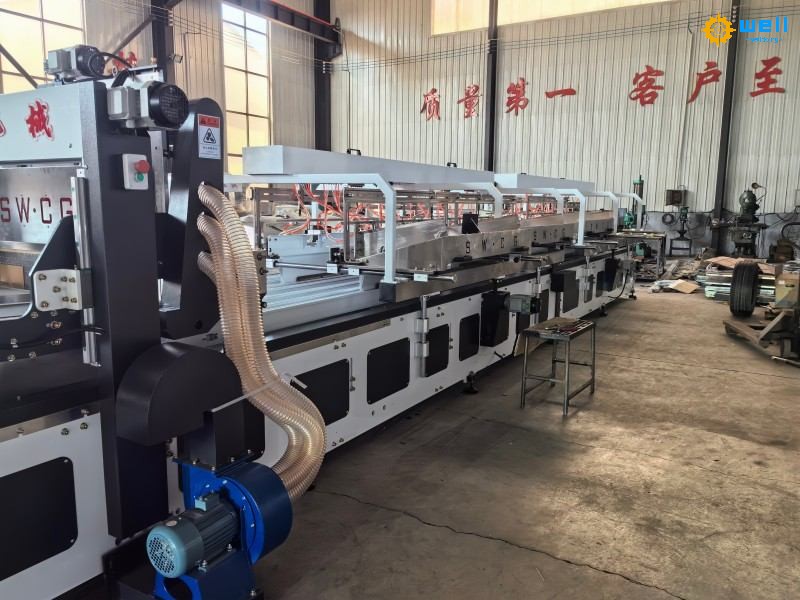

Fourth, maintenance and running cost are kept low. Since the machine removes the glue system, there are no glue pumps, glue hoses, glue nozzles to clean or replace regularly. There is no glue waste, no glue solidification blockage, no daily cleaning work for glue parts. The main frame uses heavy welded steel structure to reduce vibration during long-time continuous operation. Core electrical and pneumatic components adopt well-known international brands, supporting stable long shifts. Regular maintenance only focuses on guiding belts, feeding rollers and sensor checking. Your maintenance team will spend far less time troubleshooting compared with glue-type partition assembly machines.

This partition assembly machine fits seamlessly into existing corrugated production lines. It can work after corrugated slotters, partition slotting machines and die cutters. Pre-slotted corrugated sheets from upstream equipment go directly into this assembler to form finished partitions. Finished corrugated dividers can feed straight to carton packing stations or be stacked for storage. It is widely adopted by corrugated box plants, packaging solution suppliers, glass packaging factories, fruit packaging manufacturers and export packaging companies. If your customers require food-safe packaging, glue-free corrugated partitions also avoid risks of adhesive contamination, which helps you meet strict food packaging and export inspection standards.

Many buyers search online for partition assembly machine, corrugated partition assembler, carton divider assembly machine, automatic partition assembling machine and corrugated clapboard machine. Most searchers are factory owners, production managers and purchasing engineers looking to upgrade outdated manual partition processes. If you are comparing different partition assembly machines, the no-manual-gluing design is a key differentiator to evaluate. Glue-free interlock technology reduces hidden risks and running costs that glue-type machines cannot avoid.

Safety design is also built into this full auto partition assembly machine. Safety guards, emergency stop buttons and overload protection sensors are installed on key moving sections. When sheet jamming or abnormal feeding happens, the machine triggers alarm and stops automatically to protect operators and mechanical parts. Training for new operators is simple; most workers can master basic operation within a short training session. We also provide complete operation manuals, remote online guidance and overseas after-sales support for all buyers of our partition assembly machine.

To sum up, the Full Auto carton partition assembly machine with no manual gluing redefines corrugated partition manufacturing. As a reliable, high-efficiency partition assembly machine, it removes the old pain points of glue dependency, slow manual assembly, unstable partition quality and high labour cost. It produces clean, solid corrugated dividers for fragile goods packaging, adapts to diverse grid sizes, fits mixed-batch and mass production, and lowers your long-term production expenditure. If you are seeking an automatic corrugated partition assembler to upgrade your carton workshop and boost your competitiveness on partition order bidding, this glue-free full auto partition assembly machine is your ideal packaging machinery investment.
