If you are running a packaging factory, pallet packing plant or carton workshop, you must know how critical sturdy paper edge protectors are for cargo safety. An Automatic paper edge protector machine   is specialized packaging machinery that continuously turns kraft paper rolls into rigid L-shaped paper angle boards, widely used for pallet stacking, cargo corner reinforcement, anti-crush protection and shipping damage reduction. Many buyers search for this equipment but still wonder: how does an automatic paper edge protector machine work from raw paper to finished edge protectors? This article breaks down its full workflow, core components, technical advantages and production logic for your reference.

The whole production flow of an automatic paper edge protector machine runs in a one-pass continuous line, covering paper unwinding, tension control, automatic gluing, multi-layer paper lamination, roller forming, pressure shaping, servo fixed-length cutting and finished product stacking. All steps are coordinated by the PLC touchscreen control system, which is the brain of the whole paper edge protector making machine. Operators only need to set target length, production speed, paper layers and glue volume on the HMI panel before starting production, and the machine will run automatically with minimal manual intervention.

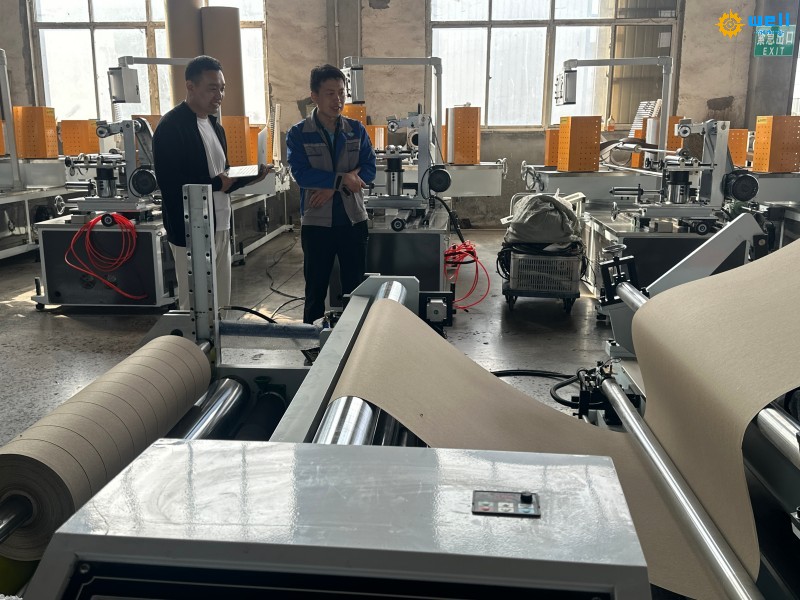

The first working stage is raw material unwinding and tension adjustment. Kraft paper rolls are loaded on multi-station unwinding stands. Good automatic paper edge protector machines are equipped with magnetic powder tension controllers to keep each paper layer tight and stable, avoiding loose paper, deviation or wrinkling during high-speed feeding. Normally, it supports 3 to 9 layers of kraft paper, and users can adjust paper layers according to required edge protector thickness. Stable feeding directly decides the straightness and strength of final paper angle boards.

Next comes precision gluing and lamination, a key step that affects bonding quality. The automatic gluing system evenly sprays or rolls water-based PVA glue on the paper surface. Compared with manual gluing, the Paper edge protector making machine-controlled glue dosage stays consistent, no excess glue dripping or insufficient bonding. Multiple paper layers are stacked together after gluing and enter the forming section as a composite paper strip. This gluing unit is designed with easy cleaning structure to reduce glue solidification and daily maintenance time.

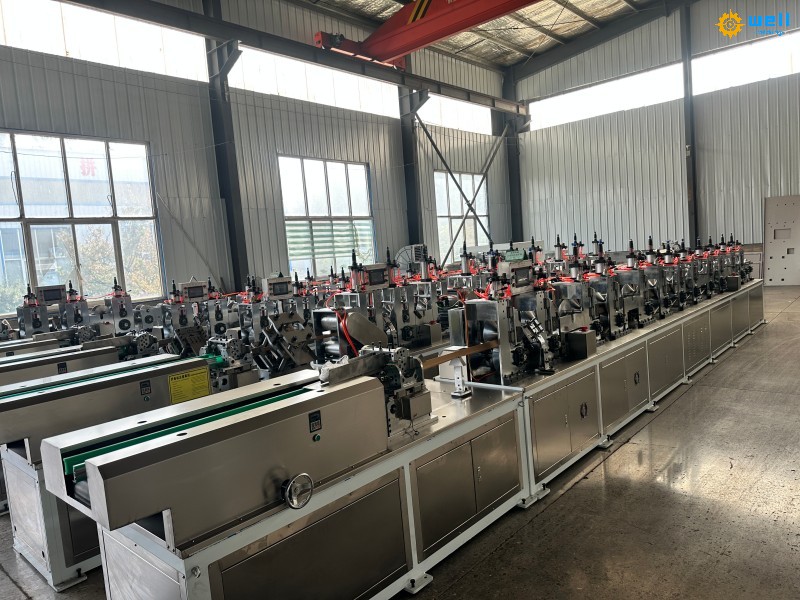

Then is forming and pressing. The laminated wet paper strip passes through a set of customized forming rollers. These rollers gradually fold the flat multi-layer paper into standard L-profile, which is the classic shape of paper corner protectors. After shaping, a group of heavy pressure rollers compress the angle board tightly, squeezing out extra glue and making all paper layers bond firmly. This compression process removes internal gaps and greatly improves the rigidity, compression resistance and impact resistance of finished edge protectors. At this stage, you can switch forming molds to produce different sizes of angle boards with different width specifications.

After shaping and preliminary curing, the continuous long paper angle board moves forward to the servo cutting station, the most important precision module of a high-speed paper edge protector machine. Servo tracking cutting follows the preset length signal and cuts the running edge board at high speed without stopping the line. It supports custom lengths from 300mm up to 2000mm or longer. Servo cutting guarantees low length tolerance, less burr and smooth cutting surface, far better than traditional fixed-speed cutting. No material pause means stable output speed.

The final step is output and automatic stacking. Cut paper edge protectors slide down the discharge conveyor and are neatly stacked by the stacking device. Workers only collect finished bundles and pack them. A fully automatic line can match automatic counting, bundling and waste removal functions to further cut labor cost. A stable automatic paper edge protector machine can reach 20–45 meters per minute, which is dozens of times higher than semi-automatic equipment.

Why choose this automatic paper edge protector machine instead of semi-auto models? First, labor saving: one operator can manage one whole production line. Second, consistent quality: uniform thickness, stable angle and reliable compression strength, which meets strict pallet packaging and export container standards. Third, eco-friendly: it uses recyclable kraft paper and water-based glue; finished paper edge protectors are 100% recyclable, plastic-free, ideal for green packaging and export cargo. Fourth, flexible production: quickly switch size settings on touchscreen for different customer orders, suitable for small batch and mass production.

Finished L-type paper edge protectors made by this machine are widely used in palletized goods, furniture packaging, ceramic tile packing, glass products, metal profiles, carton export, logistics warehousing and cold chain shipping. They prevent corner denting, pallet collapse and strap damage during forklift handling, sea freight and land transport, effectively lowering cargo claim losses.

To sum up, an automatic paper corner protection production line works as an integrated continuous production line: unwind kraft paper → tension control → automatic gluing → multi-layer lamination → roller forming into L shape → pressure consolidation → servo fixed-length cutting → stacking finished edge protectors. If you are looking for a reliable paper angle board machine for your packaging factory, high-speed servo automatic paper edge protector equipment is a cost-effective long-term investment to upgrade your packaging material production capacity.
