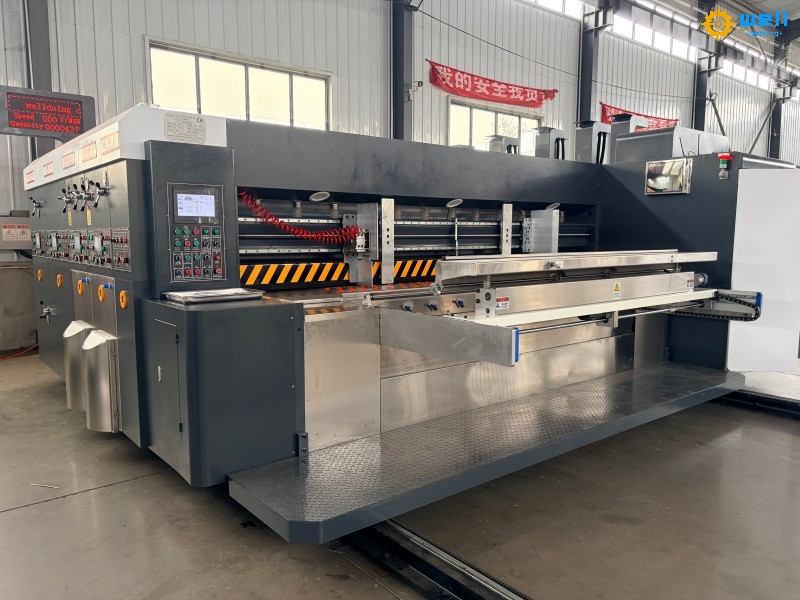

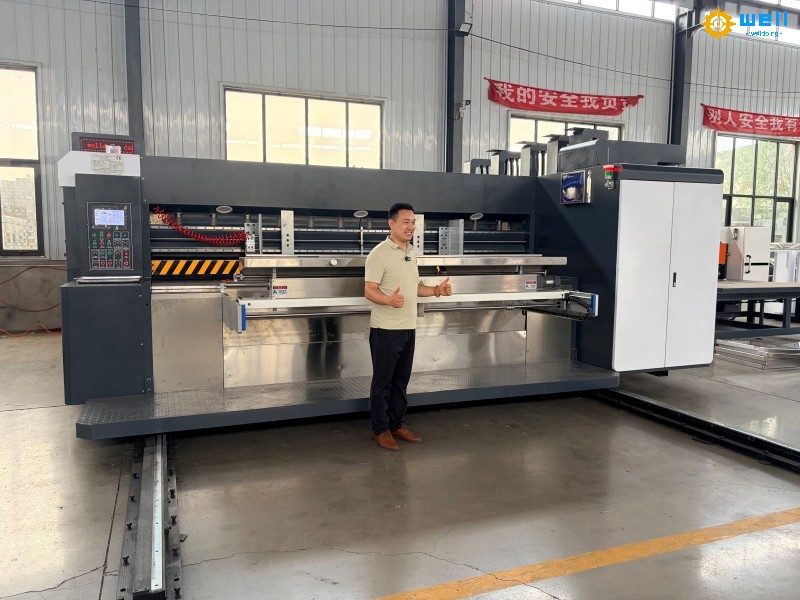

A  Lead edge printer slotter die cutter machine is an all-in-one corrugated packaging production equipment built for modern carton manufacturing plants. It integrates flexo printing, slotting, creasing and rotary die cutting into one continuous workflow, replacing separate standalone machines and simplifying corrugated box fabrication. Unlike traditional chain feed printer slotter die cutters, this model adopts a professional lead edge feeding system to grip and feed the front edge of corrugated sheets, delivering stable feeding, high register accuracy and faster running speed for carton factories of all sizes.

If you run a corrugated box plant, packaging converting workshop or custom carton production line, a lead edge printer slotter die cutter machine is one of the core equipment to boost your output and print quality. It processes 3-ply, 5-ply and 7-ply corrugated cardboard, turning plain board into finished shipping boxes, retail cartons, food packaging boxes, display boxes and custom printed packaging with brand logos, barcodes and graphics in one pass. Many carton manufacturers upgrade from chain feed machines to lead edge printer slotter die cutter machines to solve common pain points such as cardboard warping, misregistration, sheet jamming and high waste rate.

How Does a Lead Edge Printer Slotter Die Cutter Machine Work?

The whole production cycle starts from the lead edge feeder unit, the most distinctive part of this carton machine. Equipped with vacuum suction and anti-slip feeding wheels, the lead edge feeder picks single corrugated sheet from the stack, aligns the leading edge accurately and sends cardboard into the printing section steadily. Variable-frequency vacuum control adjusts suction force automatically, which handles curved, thin or uneven corrugated sheets far better than old feeding designs.

Next comes the flexo printing unit. Water-based ink flexo printing prints text, patterns and brand marks on cardboard. Multiple color stations are optional from 1 color to 4 colors, supporting high-definition carton printing with tight color registration tolerance. After printing, sheets move to the slotting and creasing station. Slotting knives cut box joints and folding notches, while creasing wheels press neat fold lines without breaking the corrugated liner. Finally, the rotary die cutting unit cuts custom shapes, holes and special box outlines, completing all required processes before stacking.

The whole Corrugated carton flexo printer slotter die cutter machine runs under PLC and touch screen control. Operators can save carton job parameters, adjust size, print position and die-cut phase quickly for order changeover. Fast job switching greatly reduces setup time and paper waste for mixed small-batch and mass carton orders.

Key Advantages of Lead Edge Printer Slotter Die Cutter Machine for Carton Manufacturing

1. Superior feeding stability and higher accuracy The lead edge feeding mode locates every sheet by its front edge, so print registration and die-cut position keep consistent. Registration error stays within ±0.5mm normally, which is critical for high-grade printed cartons. It works reliably even with warped corrugated board that easily causes feeding failure on chain feed printer slotter die cuttersAlibaba.co….
2. Higher running speed and larger production capacity Standard lead edge printer slotter die cutter machines can reach stable working speed from 150 pcs/min up to 220 pcs/min. Continuous high-speed operation helps carton manufacturers shorten lead time and handle big bulk orders efficiently.
3. Lower material waste and labor cost Combining printing, slotting, creasing and die cutting on one machine cuts handling steps. Less manual sheet transfer means fewer scratches, misfeeds and defective cartons. Quick recipe recall cuts trial run waste during order replacement.
4. Wide compatibility for carton specifications It supports various cardboard thicknesses and box sizes for e-commerce shipping cartons, fruit boxes, industrial packaging, gift boxes and retail display cartons. Customers can customize color groups, working width and add optional stacker, waste stripping device according to their production plan.
5. Durable structure and easy maintenance Heavy cast iron frame, heat-treated alloy steel gears and chrome-plated rollers guarantee long-term stable operation. The lead edge feeder wheels are wear-resistant, and wearing parts are easy to replace. Clear safety protection and fault alarm functions reduce unexpected downtime.

Who Needs a Lead Edge Printer Slotter Die Cutter Machine?

This carton converting machine fits packaging converters, corrugated box factories, printing and packaging enterprises, as well as new carton production lines. It is especially recommended for manufacturers focusing on high-quality printed cartons and frequent order changes. If you still use chain feed printer slotter die cutter machines and often face registration deviation and sheet jam issues, upgrading to a lead edge printer slotter die cutter machine will bring obvious quality and efficiency improvement.

FAQ

Q: Lead edge printer slotter die cutter vs chain feed printer slotter die cutter, what is the difference?

A: The core difference is the feeding method. Lead edge feeder positions cardboard by the front edge of the sheet for better precision and stability; chain feed machines pull cardboard by side chains, which is more likely to shift when cardboard is bent or thin.

Q: Can this machine do custom die-cut shapes for special cartons?

A: Yes. The rotary die-cutting station works with custom die templates to cut special openings, handles and irregular box outlines for custom packaging.

Q: Is the lead edge printer slotter die cutter machine hard to operate?

A: No. PLC touch screen control is user-friendly. After simple training, operators can store, recall and adjust carton production parameters smoothly.

Closing

For carton manufacturing aiming at high speed, stable printing registration and flexible order production, the carton box printer die cutter slotter machine is a cost-effective upgrade solution. It streamlines corrugated box production, improves finished carton quality and helps packaging manufacturers gain stronger competitiveness in the custom carton market. Contact us to get detailed specifications, quotations and layout plan for your new lead edge printer slotter die cutter machine.
