If you run a corrugated carton factory or packaging production line, you must know that making carton partitions manually is time-consuming, inconsistent and costly. A partition assembler machine is the core automatic packaging machinery to produce grid-style carton dividers, widely used for glass bottles, cans, electronics, fruits and fragile goods packaging. Many buyers search for the partition assembler machine working process before placing orders, to check whether the machine matches their production layout and product specifications. This article will walk you through the complete operation workflow of WD partition assembler machine, its core advantages, applications and key technical highlights for packaging converters.
What is a partition assembler machine?
A partition assembler machine, also called carton partition assembly machine, is specialized corrugated board equipment that assembles pre-slotted vertical and horizontal paper strips into complete grid partitions automatically. Pre-cut corrugated strips from partition slotter machine are fed into the partition assembler machine. The machine cross inserts longitudinal and transverse paperboards to form multi-cell carton dividers, which separate products inside cartons to prevent collision and breakage during transit and storage.

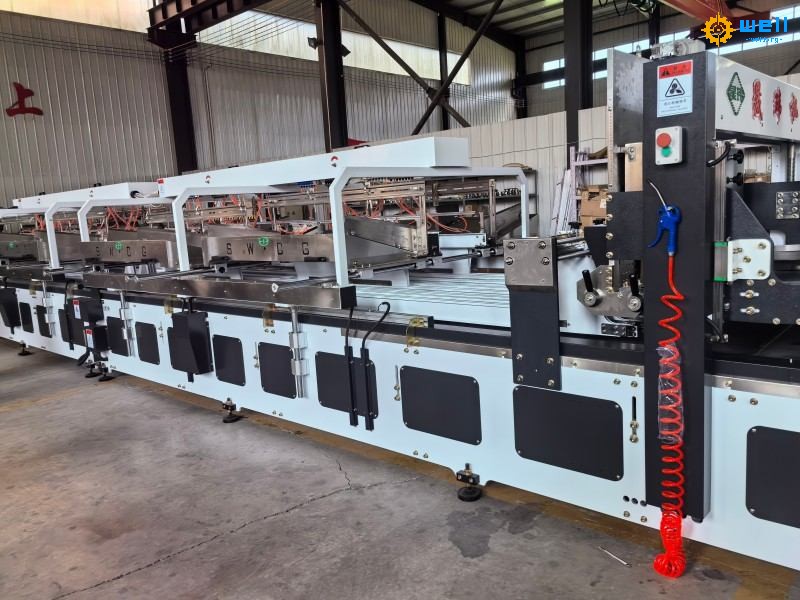

WD automatic partition assembler adopts vacuum suction feeding and servo drive system, controlled by PLC touch screen. It can handle E-flute, B-flute, C-flute and double wall corrugated board, supporting custom cell sizes for different carton dimensions. Compared with manual assembly, WD partition assembler machine drastically cuts labor input, stabilizes partition quality and greatly improves output for medium and large packaging factories.
The complete working process of partition assembler machine
Step 1: Pre-setup and material loading
Before starting the Automatic partition assembly machine, operators finish parameter setting on the touch screen. Input partition size, cell quantity, feeding speed and board thickness. The electric lifting mechanism adjusts the vertical and horizontal feeding stations to match the corrugated strip size.
Pre-slotted corrugated strips are stacked on two feeding tables: one for longitudinal strips and another for transverse strips. The vacuum suction feeding system picks corrugated boards one by one, avoiding double feeding or missing feeding. This preparation step ensures the partition assembler machine runs smoothly and reduces material waste.
Step 2: Dual-direction automatic feeding
This is the core stage of the partition assembler machine process. Vertical feeding uses vacuum adsorption to pull longitudinal slotted strips forward, while horizontal servo feeding pushes transverse strips synchronously. Servo motors control feeding speed and position precisely, so each paper strip arrives at the inserting station at the exact time.
WD partition assembler separates vertical and horizontal feeding channels, independent air and electric control. There is no mutual interference between two feeding groups, even running at high speed. The system detects paper shortage or jamming automatically and triggers alarm prompts on the HMI screen.
Step 3: Cross inserting and partition forming
When longitudinal and transverse corrugated strips reach the assembly station, the partition assembler machine executes cross insertion. The slots on vertical and horizontal strips interlock together to form a rigid grid carton partition.
This cross assembly is the key function of the partition assembler machine. Manual assembly often leads to loose joints, deformed grids and uneven cell sizes. WD servo-controlled inserting mechanism ensures every interlock is fully seated. The finished partition has neat grids, stable structure and consistent dimension, which fits perfectly into target cartons. The machine supports variable cell layouts for bottle packaging, food packaging and electronic component packaging.
Step 4: Finished partition conveying and stacking
After assembly, the completed carton partition is conveyed out of the partition assembler machine via the discharge conveyor. WD machine adopts double-position output design to boost production efficiency. Operators can collect finished partitions on two sides alternately without stopping the machine.
Optional stacking device can stack finished partitions neatly. The stacked partitions are ready for direct packing into corrugated boxes. The whole process from board feeding to finished partition stacking is automatic, only one operator is required to replenish raw paper and monitor machine status.
Step 5: Inspection, fault monitoring and continuous production
The WD partition assembler machine runs real-time self-inspection during the whole working cycle. Sensors track feeding status, insertion position and discharge. If paper jam, board deviation or material shortage occurs, the machine slows down or stops automatically with alarm notification, protecting machine parts and reducing defective products.
Operators can adjust speed or dimension parameters on the touch screen without mechanical rework. After one batch finishes, simply reset parameters to switch to another partition size, which brings strong flexibility for factories with multiple product SKUs.
Key benefits of WD partition assembler machine
- High automation and labor saving: Replace 4–6 manual workers for partition assembly. Reduce labor cost and human error.
- Wide material compatibility: Works with single wall, double wall corrugated board, supports custom partition sizes.
- Stable output: Consistent partition quality, neat grid structure, low defective rate.
- Easy operation and maintenance: PLC touch screen, simple operation, convenient daily maintenance.
- Flexible production: Quick size changeover for different carton packaging projects.
Typical applications of partition assembler machine

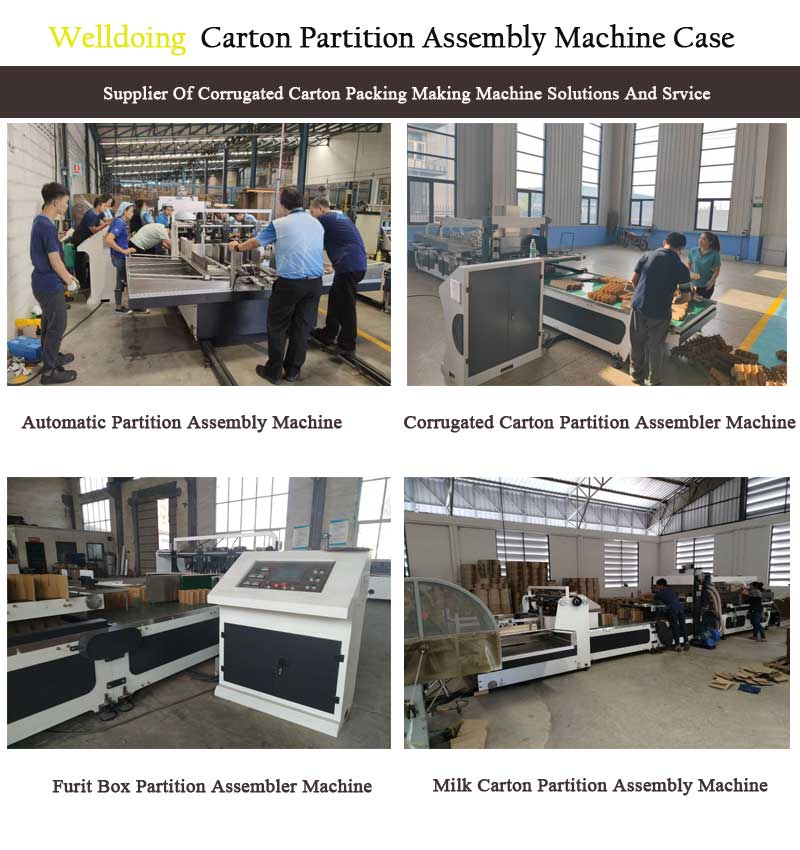

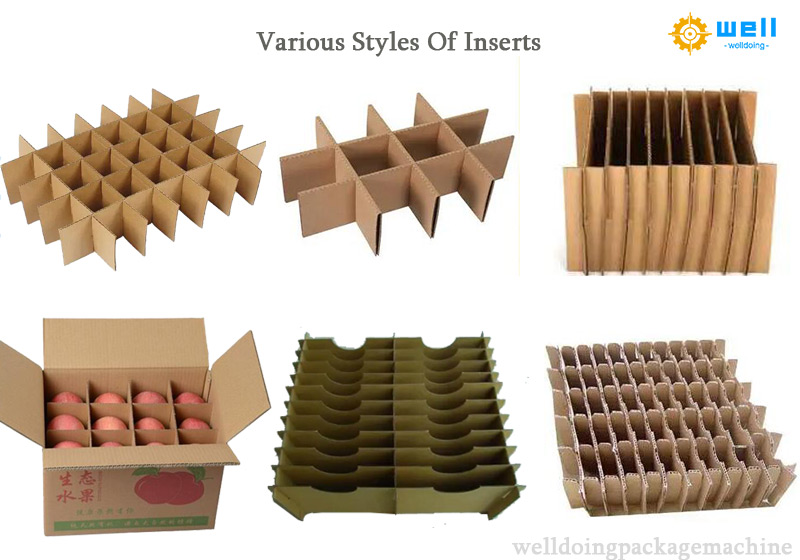

The partition assembler machine serves corrugated packaging plants, food and beverage packaging factories, glassware manufacturers, fruit packaging suppliers and electronic packaging converters. The assembled carton partitions are widely used for wine bottles, beer bottles, canned goods, fruits, ceramic items and fragile electronic parts. For export packaging, uniform corrugated partitions reduce cargo damage rate and improve customer satisfaction.
Final summary
The working process of carton partition assembler machine covers parameter setup, dual-direction feeding, cross inserting, finished product discharging and real-time monitoring. WD automatic partition assembler integrates vacuum feeding, servo drive and PLC control, delivering reliable high-speed partition assembly for packaging manufacturers. If you are looking for a stable partition assembler machine to upgrade your carton partition production line, WD packaging machinery provides tailor-made solutions, factory direct supply and full after-sales service. Contact us to get machine specifications, video and quotation for your packaging project.
