Corrugated cardboard hardboard production line has complete models. Please consult customer service for detailed customization parameters

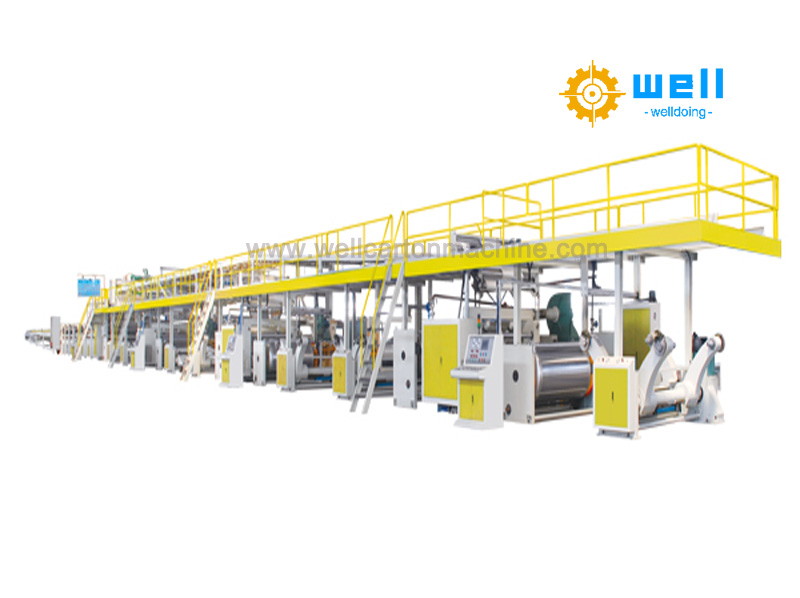

Three (five) layer corrugated board production line

Three layer corrugated board production line  is composed of suction corrugated machine, hydraulic base paper rack, automatic paper receiving machine, gluing machine, dryer, straight knife paper cutter, single (double) layer preheating cylinder and corner plate receiving platform, with a mechanical speed of 120m / min. It is characterized by a high degree of automation. The automatic paper receiving machine realizes non-stop paper roll change, simple and convenient operation, high efficiency and high paperboard quality. In particular, the patented product “Wan knife paper cutter” of our company adopts German motion control technology to improve the cutting accuracy of paperboard, realize the over cutting of paperboard and save paper materials.

Model: CX Series 2000Five layer corrugated cardboard production line:

1. Maximum production width of corrugated board: 2000mm
2. Design speed: 150m / min
3. Economic speed: 100-120m / min (third floor)
Note: the paper for production line speed test shall meet the following requirements: (the surface temperature of the equipment shall not be less than 172)
The grade of base paper shall not be lower than grade B. the water content of base paper is about 11 ± 2
Face paper: 100250g / m2 core paper: 100 — 250G / m2
Tile paper: 100200g / m2
4. Corrugated type combination: A, C, B, e (or selected by the customer)
5. Requirements for steam:
Maximum pressure: 1.2MPa
Common pressure: 0.8-1.1mpa
6. Power supply: 380V 50Hz three-phase four wire system
7. Total installed power of equipment: About 200kW, actual power consumption: about 180kW
8. Equipment area: About 60m × 10m × 4m (the specific length shall be subject to the foundation drawing)
9. Paper output direction of equipment: set the drive left or right according to the user’s workshop
10. Applicability of the equipment: Grade A, B and C domestic base paper or imported base paper can be used.

WELLDOING TRADING Co. Ltd. is a manufacturer + sales and after-sales company, which is mainly engaged in large-scale semi-automatic chain-bar water-based printing machine,automatic flexo printer slotter die cutter stacker machine , high-speed high-definition paper box printing and slotting die-cutting machine, 2 layers corrugated production line, box-sticking machine, Tying Machine ,Automatic Partition Assembler Machine, paper tube making machine, flexo ink printing wastewater treatment machine and so on.

Our Services

1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.

FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .

2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.

3. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
