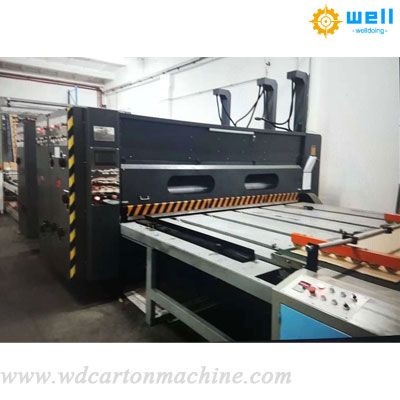

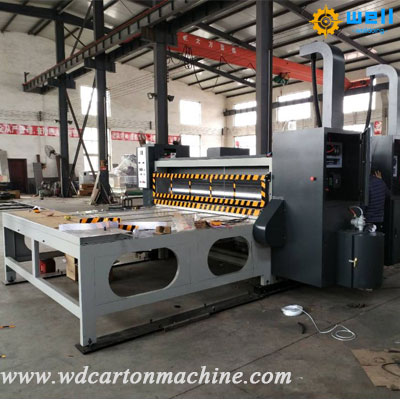

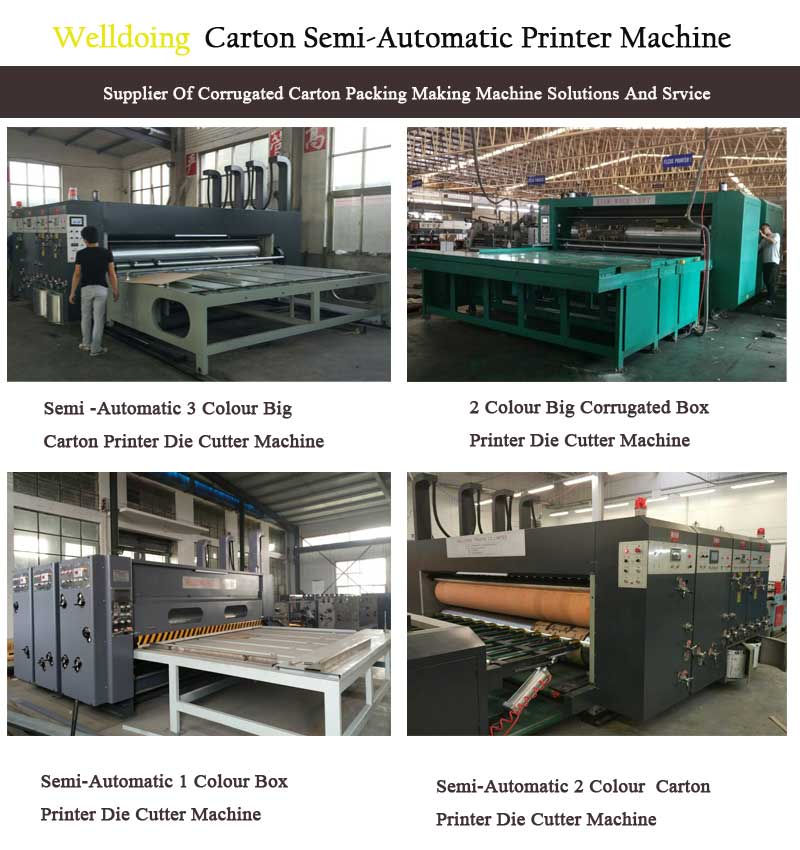

carton box semi-automatic flexo printer die cutter slotter machine - Welldoing trading limited
semi automaticflexo printer die cutter slotter machine function and characteristics:
1. Use the combination chain style on feeding table.
2. Adopt planet style digital electrical adjustment of 360 degree whatever operating and stop quickly and accurately.
3. Ink roller can be detached automatic from printing plate to avoid damage the printing plate when stop the machine.
4. All of the shaft roller are hard chrome, strength the hardness.
5. Ink roller equipped the separately turn device to prevent ink dried when machine stop.
6. Pneumatic lock , electric divides.
7. The module design, multi-color printing units in any combination.
8. With pneumatic diaphragm pump to supply ink.
9. Main transmission gears are made by 45#steel after high frequency quenching.
Semi-automatic flexo printer die cutter slotter machine Structure Composition:
1.Main Fram
Integrated thick steel welded frame with stress relief treatment to avoid vibration and deformation during operation, stabilizing printing precision long-term. Anti-rust coating adapts to humid and ink-stained workshop environment.

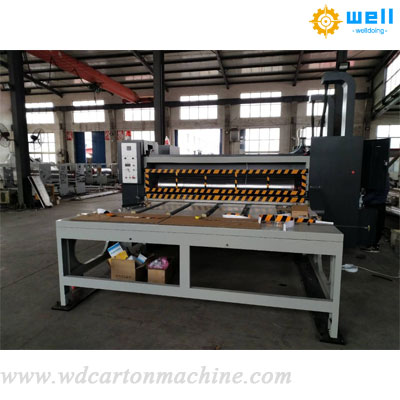

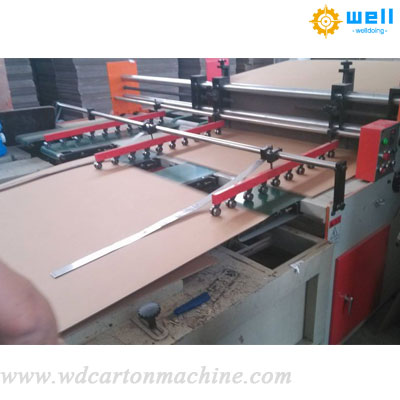

2.Manual Feeding Table
Manual feeding platform with adjustable positioning baffles to fit cardboard of different sizes, workers feed corrugated boards into printing area manually.

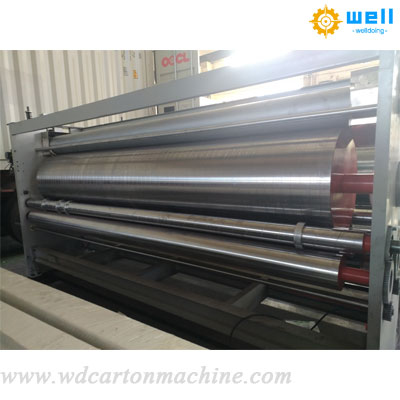

3.Inking System
Consists of ink tank, distributing rollers, transfer rubber rollers and printing cylinder. Water-based ink is stored in the ink tank; rotating rubber rollers spread ink evenly onto flexible printing plates. Ink thickness is adjustable to guarantee full, smooth printing without missing prints.

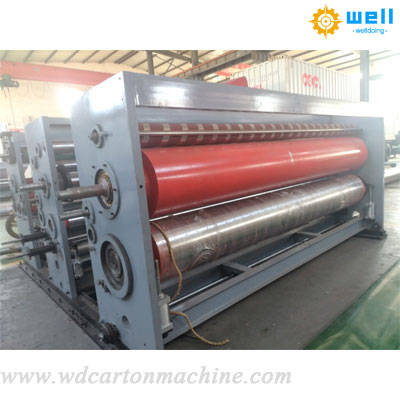

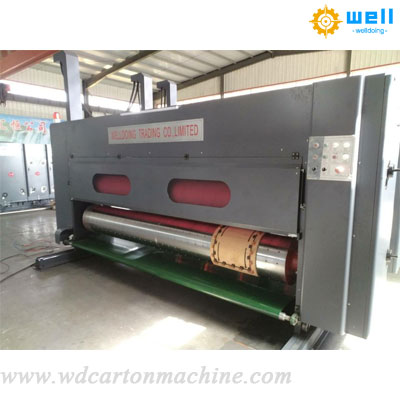

4.Printing & Impression Unit
The core printing part. Flexible rubber plate is mounted on printing cylinder, matched with impression roller. Cylinder pressure control realizes adjustable printing force for thin and thick corrugated boards, delivering clear patterns without smudging. Single-color, two-color and three-color configurations are optional.
5.Slotting & Scoring Assembly (integrated type)
Automatically finishes slotting, corner cutting and creasing after printing. Positions of cutting knives and scoring wheels are electrically adjustable, completing printing and slotting in one pass to save secondary processing.
6.Driving & Transmission System
Main motor equipped with reducer and chain gear transmission, controlled by variable frequency speed regulation to adjust printing speed freely. All transmission parts are equipped with safety shields.
7.Adjustment Mechanism
Horizontal & axial fine-tuning devices calibrate printing position to avoid offset printing; pressure handwheels control printing depth precisely.
8.Electric Control System
Independent control cabinet with start-stop buttons and speed control panel, equipped with emergency stop and overload protection, easy to operate for ordinary workers.

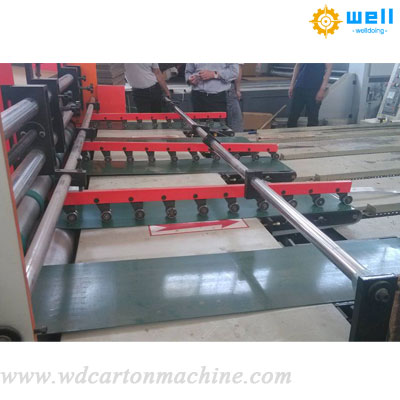

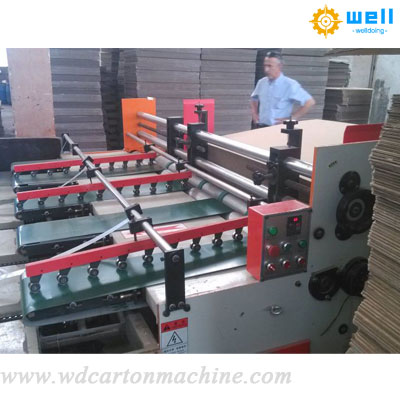

9.Discharging Table
Printed boards are conveyed out automatically for manual collection. Optional air fans dry water-based ink rapidly to prevent smudge and adhesion.
WELLDOING TRADING Co. Ltd. is a manufacturer + sales and after-sales company, which is mainly engaged in large-scale semi-automatic chain-bar water-based printing machine,automatic flexo printer slotter die cutter stacker machine, high-speed high-definition paper box printing and slotting die-cutting machine, 2 layers corrugated production line, box-sticking machine, Tying Machine ,Automatic Partition Assembler Machine, paper tube making machine, ink waste water treatment machine and so on.
