For corrugated carton manufacturers looking to raise output and cut labor, the Automatic folder gluer stitcher machine is one of the most cost-effective upgrades a packaging plant can make. This all-in-one machine feeds corrugated board, folds it into box shape, applies glue, stitches the joint, and stacks finished cartons automatically. By combining three production steps into one line, it replaces separate folder gluer and stitcher machines, reduces manual handling, and delivers consistent box quality at high speed.
In this guide, we explain how an automatic folder gluer stitcher machine works, its key benefits, typical specifications, applications, and how to choose the right model for your factory.
What Is an Automatic Folder Gluer Stitcher Machine?
An automatic Folder gluer stitching machine is a carton converting machine that completes the box-forming process in one pass. It is designed for corrugated board — single-wall A, B, C and double-wall AB flute — and produces rigid, flat-folded cartons with glued and stitched joints, ready for packing and shipping.
The machine integrates three core functions:
- Folding — creases and folds the board along the crease lines to form the box panels
- Gluing — applies adhesive to the joint flap with precise, even coverage
- Stitching — secures the joint with wire stitches for extra strength on heavy-duty boxes
Unlike single-function machines, a combined folder gluer stitcher can run each function independently or synchronously. That gives manufacturers the flexibility to produce glued cartons, stitched cartons, or glued-and-stitched boxes on the same equipment.
How Does an Automatic Folder Gluer Stitcher Machine Work?
The production process is fully automated from start to finish:
- Feeding — corrugated blanks are loaded into the feeder, which separates and feeds sheets automatically (suction-belt feeding is the most common system)

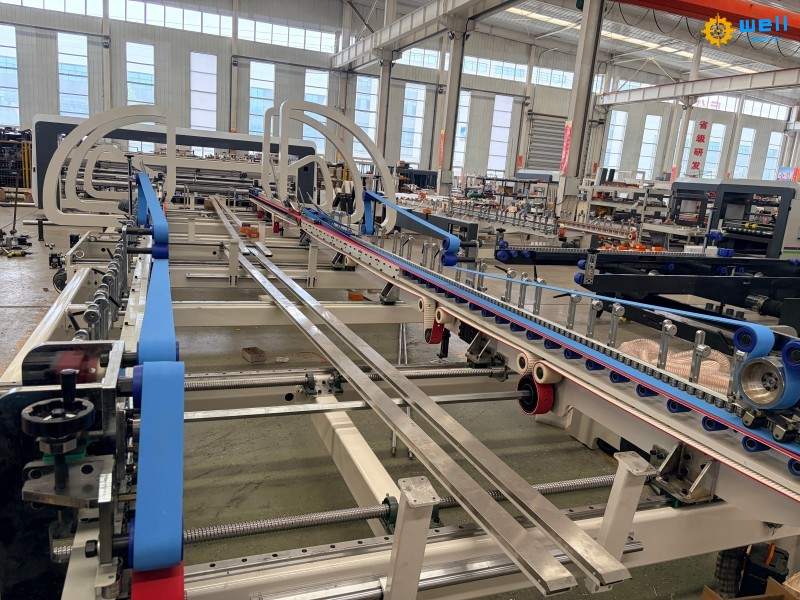

- Folding — the blank passes through folding stations where panels are folded along the crease lines
- Gluing — glue is applied to the joint area evenly, avoiding overflow or missed spots

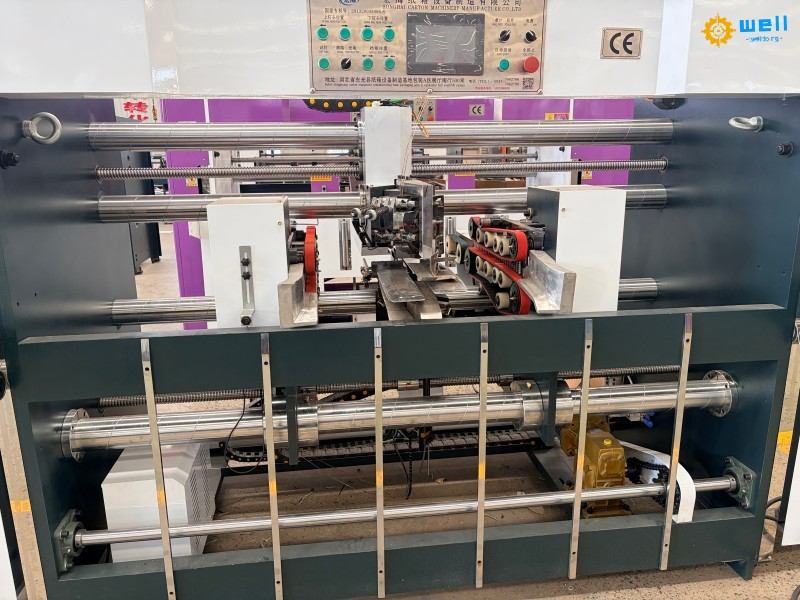

- Stitching — the stitcher head drives wire stitches at a set spacing and angle to lock the joint firmly
- Counting and stacking — finished cartons are counted and stacked automatically, ready for removal
With PLC (programmable logic controller) and touchscreen control, operators set box size and process parameters in seconds. Modern machines store production recipes for different box styles, so repeat orders can be recalled with one click — eliminating re-debugging errors and changeover downtime.
Key Benefits for Packaging Manufacturers
1. Higher production efficiency. Because folding, gluing and stitching run in one continuous flow, output is far higher than running separate machines. Typical models reach 100–150 boxes per minute for gluing and 50–80 stitched boxes per minute, depending on configuration.
2. Lower labor costs. One integrated machine replaces multiple standalone units and reduces the number of operators from several to just one or two. Automatic feeding, counting and stacking enable near-unmanned continuous production.
3. Consistent carton quality. Automatic deviation correction keeps folding, gluing and stitch spacing accurate, producing boxes with uniform dimensions, flat joints and strong compression resistance — essential for customers who demand packaging consistency.
4. Space and cost savings. One combined machine takes less floor space than a folder gluer plus a separate stitcher, and costs less than buying two machines.
5. Production flexibility. Compatibility with A, B, C and AB-flute boards, plus a wide box-size range, lets factories handle everything from small e-commerce cartons to heavy-duty industrial boxes on a single line.
Folder Gluer Stitcher vs. Separate Machines
|
Factor
|
Separate folder gluer + stitcher
|
Integrated automatic folder gluer stitcher
|
|
Floor space
|
Two machines, longer line
|
One machine, compact layout
|
|
Operators required
|
Several per line
|
1–2
|
|
Transfer between steps
|
Manual or conveyor handling
|
Automatic inline transfer
|
|
Changeover time
|
Longer, two setups
|
Faster, one setup
|
|
Quality consistency
|
Depends on manual handling
|
Automated and repeatable
|
|
Total investment
|
Higher
|
Lower
|
Typical Applications
An automatic Carton box folding gluing stitching machine suits a broad range of corrugated packaging:
- E-commerce and logistics cartons
- Food and beverage packaging boxes
- Pharmaceutical and healthcare packaging
- Electronics and appliance boxes
- Industrial hardware and heavy-duty packaging
- Fruit and agricultural product cartons
Stitched joints add extra strength, which makes the machine especially valuable for heavy products where glue-only joints may fail under load.
Common box styles include regular slotted cartons (RSC), die-cut boxes and custom FEFCO styles. Because the creasing, folding and stitching sections are adjustable, one machine can produce everything from small shelf-ready retail cartons to large appliance boxes without extra tooling — a decisive advantage for factories that handle mixed orders.
How to Choose the Right Automatic Folder Gluer Stitcher Machine
When evaluating suppliers, check these six points:
- Board compatibility — confirm the machine handles your flute types (A, B, C, AB) and board thickness
- Box size range — make sure the minimum and maximum blank sizes cover your order mix
- Production speed — match the rated output to your peak demand, not just the brochure maximum
- Stitching function — check single/double stitching modes, stitch spacing and angle adjustment
- Control system — PLC with touchscreen and recipe storage reduces changeover time significantly
- After-sales support — installation, operator training and spare-parts availability determine long-term uptime
FAQ
What is the difference between a folder gluer and a folder gluer stitcher?
A folder gluer only folds and glues cartons. A folder gluer stitcher adds wire stitching for stronger joints, and can switch between gluing only, stitching only, or gluing plus stitching on the same machine.
How many workers are needed to operate it?
Typically one or two operators. Automatic feeding, counting and stacking keep manual handling to a minimum.
Can it handle double-wall AB flute board?
Yes, most models process A, B, C and AB-flute corrugated board, though maximum box size and speed vary by model.
Can the machine glue only, without stitching?
Yes. The stitching unit can be disengaged, so the machine operates as a standard high-speed folder gluer when stitching is not required — useful for lighter cartons where glue alone is sufficient.
Conclusion
An automatic corrugated carton folding gluing stitching machine is a proven way to raise carton output, cut labor costs and improve box quality — all in one integrated line. Whether you produce e-commerce cartons, food boxes or heavy-duty industrial packaging, the right machine pays for itself through lower production cost and higher capacity.
If you are evaluating an automatic folder gluer stitcher machine for your plant, contact our team for specifications, a tailored quotation and free production advice.
